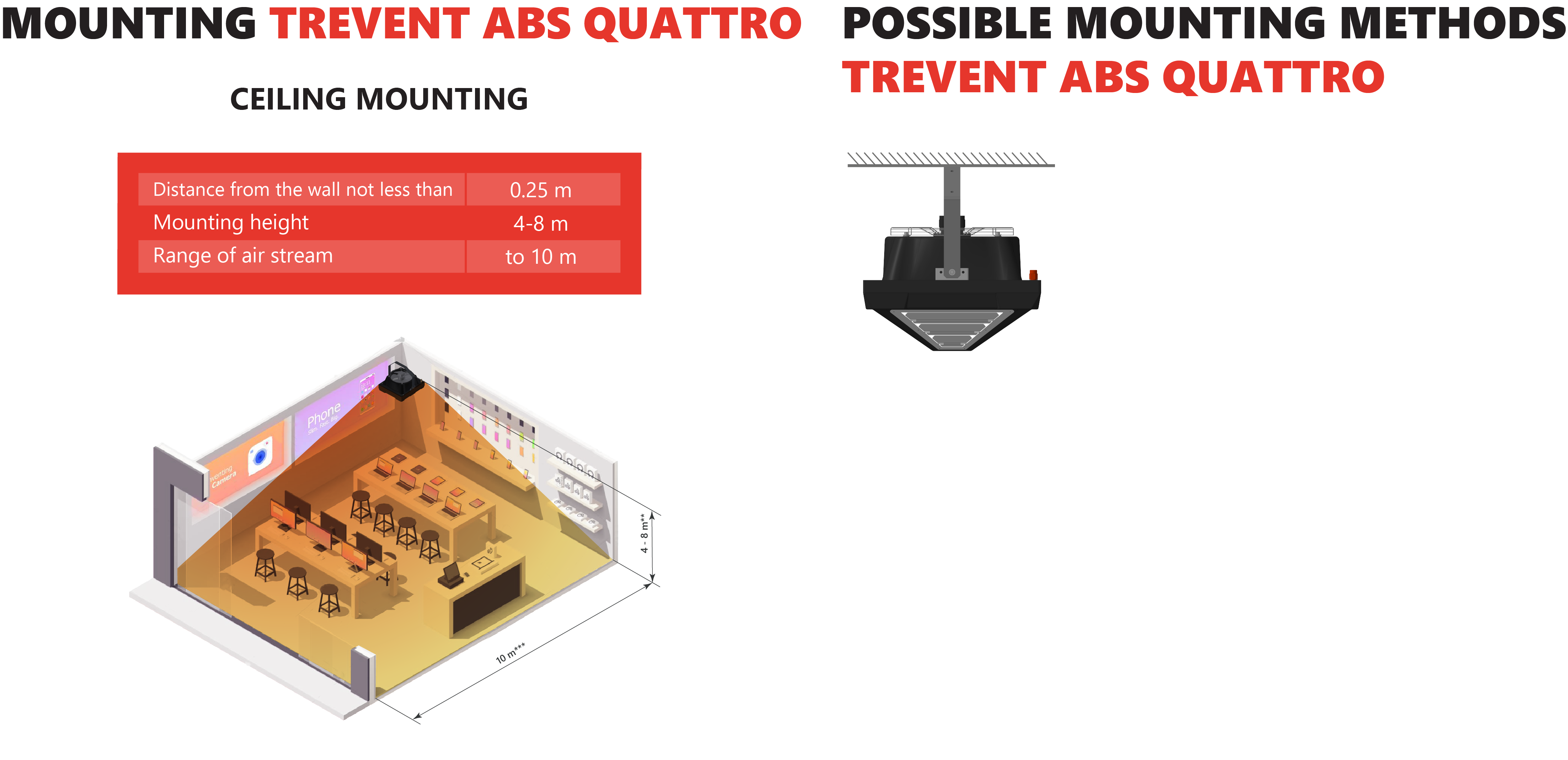

ABS series heaters are designed for rooms with an installation height of 3-6 meters for wall-mounted units and 4-8 meters for ceiling-mounted units.
ABS series heaters are designed for rooms with an installation height of 3-6 meters for wall-mounted units and 4-8 meters for ceiling-mounted units.
ABS series heaters are designed for operation in environments with high dust levels and aggressive particles present in the air. The design solutions used in this series significantly enhance operational safety and extend the service life of the heater. Thanks to the ABS plastic casing and stainless steel louvers, the TREVENT ABS can operate for extended periods without a loss in performance, provided that the instructions are followed. TREVENT ABS heaters are part of water heating systems, designed to heat air and distribute it evenly throughout the premises. The operating principle is based on an axial fan that forces air through a copper-aluminum heat exchanger, where the heat carrier circulates. The heated air is directed into the working area of the premises using adjustable louvers.

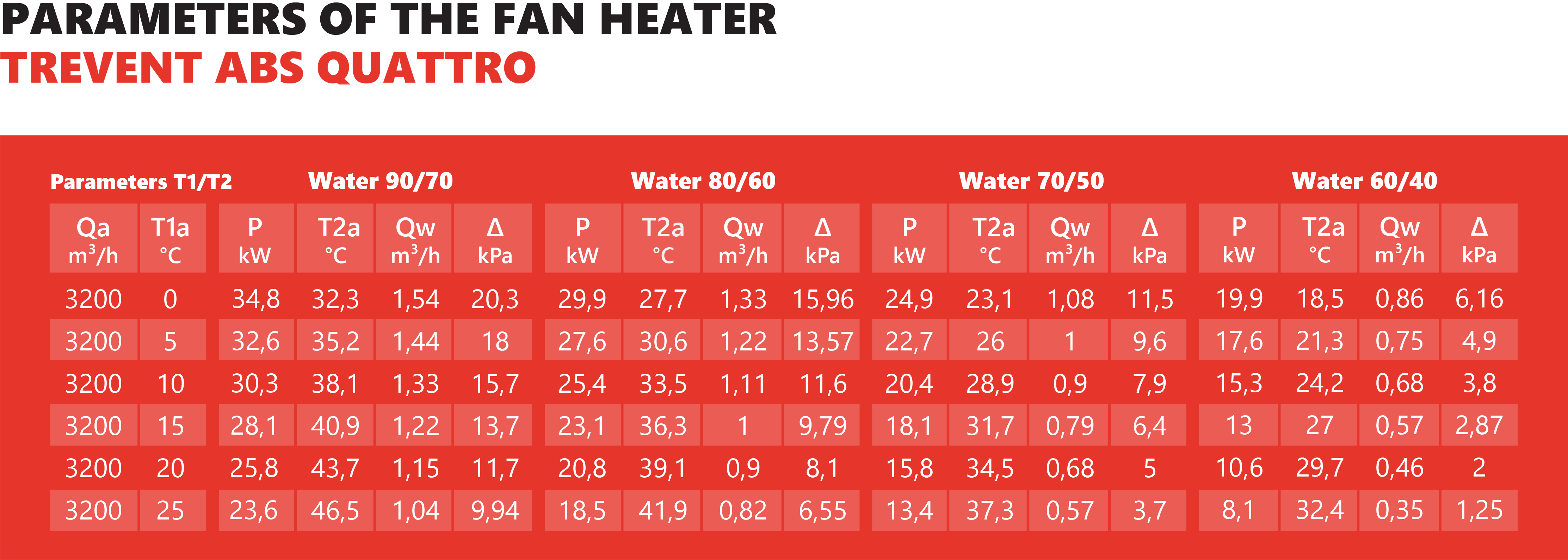

Т1 - water temperature at the inlet to the fan heater Р – thermal power of the fan heater
Т2 - water temperature at the outlet of the fan heater Δ – water pressure drop in the heat exchanger
Т1a – air temperature at the inlet to the fan heater Qa – air flow
Т2a – air temperature at the outlet of the fan heater Qw – water flow
