TREVENT ATEX series heaters with explosion-proof motors are designed for installation in environments with increased explosion hazard requirements. They are suitable for production areas where flammable gases, liquids, combustible fibers, dust, or explosive mixtures are present, in compliance with fire safety standards and explosion protection classifications.
ATEX series heaters are intended for heating industrial and warehouse premises with heightened explosion safety requirements. This equipment is specifically designed for use in zones with a high risk of explosion due to interactions with hazardous environments or specific technological processes. TREVENT ATEX heaters are integrated into water heating systems, providing efficient air heating and uniform distribution throughout the premises. Their operation is based on an axial fan that forces air through a copper-aluminum heat exchanger containing the heat carrier. The heated air is then directed to the working area via adjustable louvers, ensuring precise and even heating of the space.

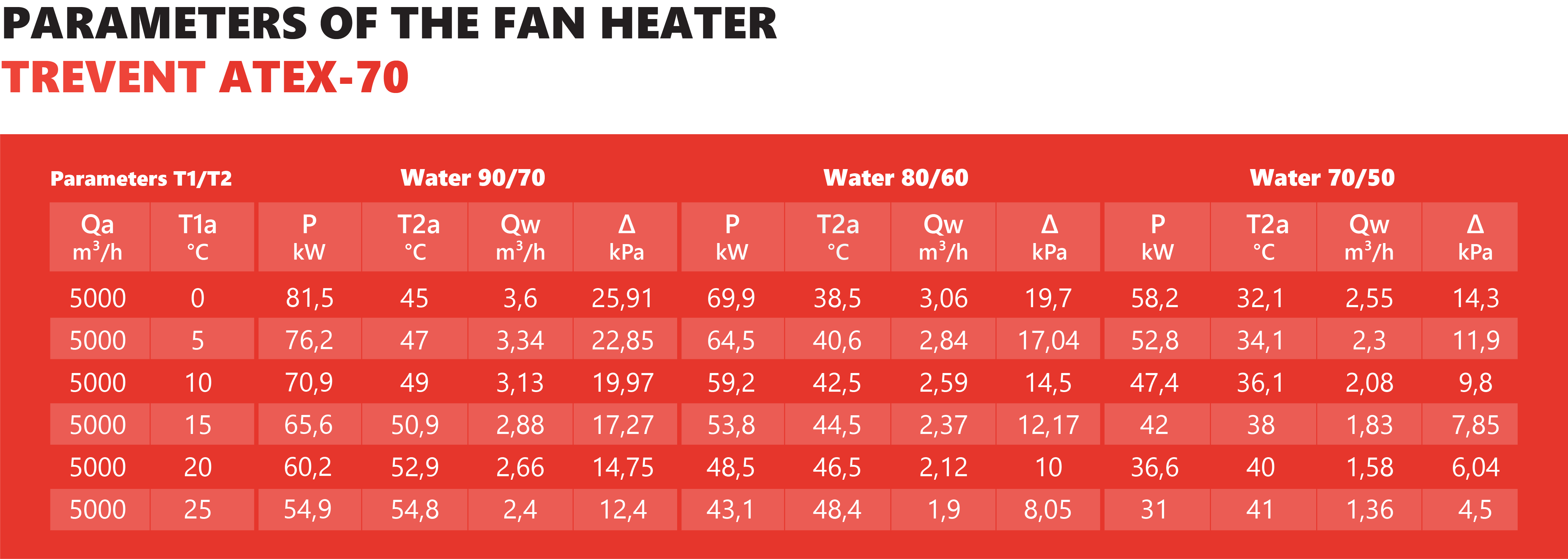

Т1 - water temperature at the inlet to the fan heater Р – thermal power of the fan heater
Т2 - water temperature at the outlet of the fan heater Δ – water pressure drop in the heat exchanger
Т1a – air temperature at the inlet to the fan heater Qa – air flow
Т2a – air temperature at the outlet of the fan heater Qw – water flow
